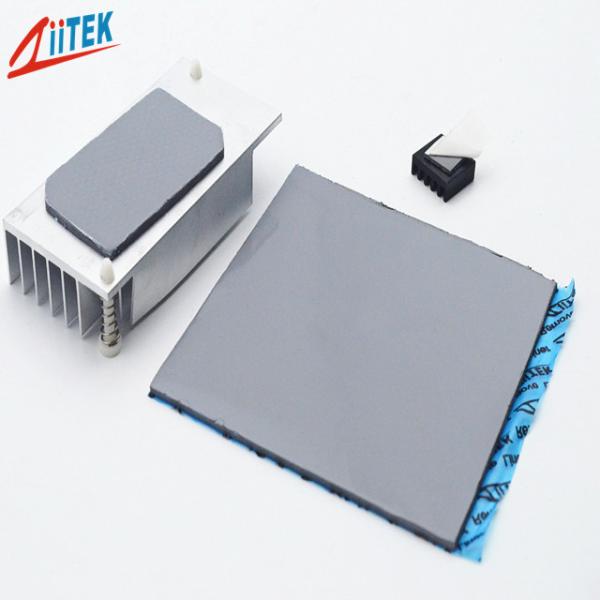

Factory Supply 3.0W/MK Thermal Silicone Pad For Medical Devices

  • 1
  • 2

Brand Name : Ziitek

Model Number : TIF300 Series

Certification : UL & RoHS

Place of Origin : China

MOQ : 1000pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 1000000 pcs/month

Delivery Time : 7-10 work days

Packaging Details : 24*13*12cm cartons

Products name : Factory Thermal Silicone Pad for Medical Devices

Thickness range : 0.5mm~5.0mm

Specific Gravity : 3.05g/cc

Dielectric Breakdown Voltage : ≥5500 VAC

Thermal conductivity : 3.0W/m-K

Color : ray

Materials : Ceramic filled silicone elastomer

Operating temp : -45~200℃

Keywords : Silicone Thermal Pad

Contact Now

Factory Thermal Silicone Pad for Medical Devices


The TIF300 Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Factory Supply 3.0W/MK Thermal Silicone Pad For Medical Devices
Features
> Good thermal conductive: 3.0W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating


Applications
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
> Medical Devices

Typical Properties of TIF™300 Series
Color Gray Visual
Construction &Compostion Ceramic filled silicone ***
Thinkness range 0.020"(0.50mm~0.200"(5.0mm) ASTM D374
Hardness 27±5 Shore 00 ASTM 2240
Specific Gravity 3.05 g/cc ASTM D297
Continuos Use Temp -40-160℃ ***
Dielectric BreakdownVoltage @ 1.0mm,AC(v) ≥5500 ASTM D149
Dielectric Constant @MHz 4.5 　
Volume Resistivity(Ohm-cm) ≥1.0X10" Ohm-meter ASTM C351
Thermal conductivity 3.0 W/m-K ASTM D412
Fire rating V-0 ASTM E595

Product Thicknesses:

0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes:

8"x 16"(203mm x406mm)

Individual die cut shapesand and custom thickness can be supplied.

Please contact us for confirming


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Factory Supply 3.0W/MK Thermal Silicone Pad For Medical Devices

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
